Theory

At the center of 3d Gaussian splatting lay two components:

• A set of Gaussians that are each described by an array of parameters that specify their position, shape, color, and opacity. These can be initialized randomly or using a point cloud generated by photogrammetric techniques like structure from motion [2].
• A set of cameras/views of the scene that we would like to reconstruct. This includes the ground truth image that has been recorded by the respective camera as well as the camera's intrinsic and extrinsic information.

Given these two, the objective is to optimize the values of the Gaussians' parameters s.t. they are maximally similar to the ground truth images when rendered by each of the cameras.

Optimization Procedure

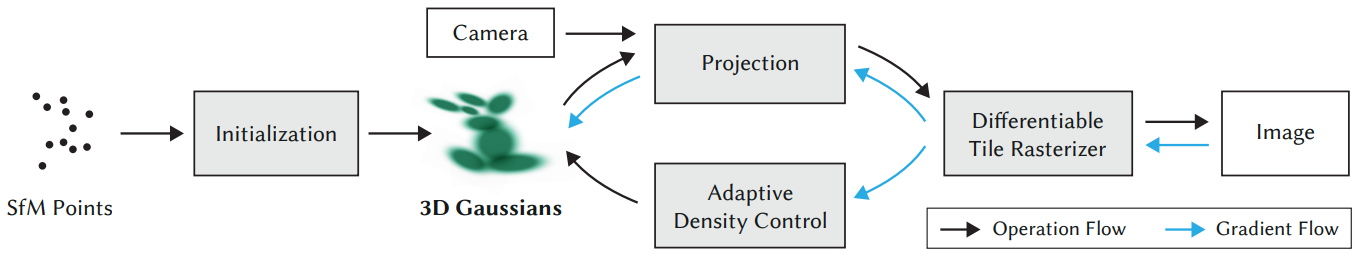

Figure 1 illustrates the optimization procedure step by step:

1. One of the cameras is randomly selected and the Gaussians are projected onto it's uv-plane.
2. The scene is rendered by the differentiable rasterizer which produces an image.
3. The loss between the rendered image and the camera's ground truth is backpropagated trough the computational graph to update the gaussians parameters using gradient descent.

This procedure is repeated until the overall loss is minimized which results in the gaussians representing the original scene.

Note that the training procedure shown in figure 1 also includes an "Adaptive Density Control" component that regulates the amount of gaussians in the scene dynamically. For the sake of simplicity, we haven't implemented this component since it is not integral to the algorithm.

Formalization of Gaussians

Before diving deeper into the theorethical details, we will first formalize how we are representing Gaussians: A Gaussian can be evaluated at a coordinate \(\mathbf{x}\) using it's probability density function: \[G(\pmb{x}) = N e^{- \frac{1}{2}(\pmb{x} - \pmb{\mu})^T \pmb{\Sigma}^{-1}(\pmb{x} - \pmb{\mu})}\] with mean: \[\pmb{\mu} = (\mu_x,\mu_y,\mu_z)^T,~\text{where}~ x,y,z \in \mathbb{R}\] covariance matrix: \[\pmb{\Sigma} \in \mathbb{R}^{3 \times 3}\] and normalization factor \(N\).

Because the covariance matrix must be positive semi-definite, this property needs to be upheld during the optimization process. To achieve this it is decomposed into a rotation matrix \(\mathbf{R}\) and a scaling matrix \(\mathbf{S}\) which can be optimzed independently without a constraint and from which a positive semi-definite covariance matrix can be reconstructed: \[\pmb{\Sigma} = \mathbf{R}\mathbf{S}\mathbf{S}^T\mathbf{R}^T.\] \(\mathbf{S}\) can be condensed into \(\mathbf{s}=(s_x, s_y, s_z)^T\) and likewise \(\mathbf{R}\) can be represented by a quaternion \(\mathbf{s}=(q_x, q_y, q_z, q_w)^T\).

Next, we also need to assign a color value to the Gaussian. In the reference implementation this is realized using spherical harmonics. This allows to not only represent a static color value but a viewing angle dependent color. However for the sake of simplicity we will model the color using a single RGB color value: \[\mathbf{c} = (r,g,b),~\text{where}~ r,g,b \in [0,1].\] Finally we note that because of the normalization constant \(N\), the opacity of the Gaussian will change with it's covariance matrix. To disentangle the opacity from the covariance we omit the normalization and instead replace it with an opacity parameter: \[o \in [0,1].\] As a result we define the following representation of a Gaussian: \[\mathbf{g} = (\pmb{\mu}, \mathbf{s}, \mathbf{q}, \mathbf{c}, o)^T \in \mathbb{R}^{14}\] (Note: \(\mathbf{c}\) and \(o\) are clipped into the correct range during rendering.)

Rendering

This section goes over the render process that consists of the projection and rasterization steps:

Projection

Let \(\mathbf{K}\) be the pinhole projection matrix. Then the projection of the mean is computed as \[\pmb{\mu}_{\text{2D}} = \begin{bmatrix}x'/z' \\ y'/z'\end{bmatrix} , \begin{bmatrix} \mu_x' \\ \mu_y'\\ \mu_z'\end{bmatrix}= \mathbf K \begin{bmatrix}\mu_x \\ \mu_y\\ \mu_z\end{bmatrix}.\]

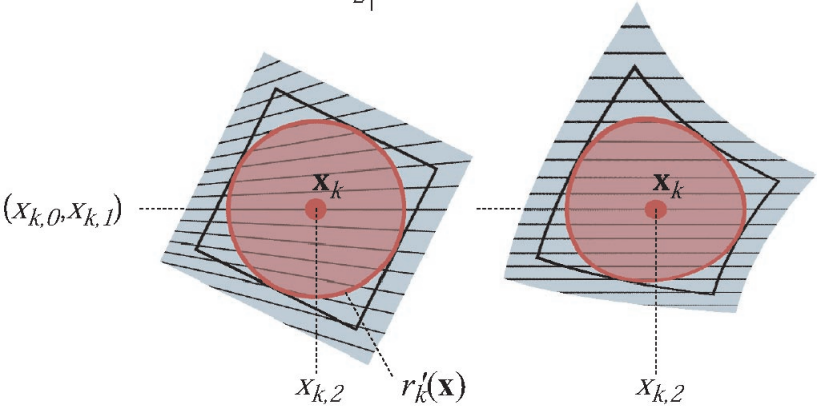

Since the pinhole projection is not an affine transformation, the result of applying it directly to the 3D-Gaussian will not result in a 2D-Gaussian (as illustrated in Figure 2). Therefore we are performing an affine approximation at the respective Gaussian's mean with: \[ \pmb{\Sigma}_{\text{2D}} = \mathbf{J}\pmb{\Sigma}\mathbf{J}^T \] where \[ \mathbf{J}(\pmb{\mu}) = \begin{bmatrix} \frac{f_x}{\mu_z} & 0 & -\frac{f_x\mu_x}{\mu_z^2} \\ 0 & \frac{f_y}{\mu_z} & -\frac{f_y\mu_y}{\mu_z^2} \\ \end{bmatrix} \] and \(\mathbf{f} = (f_x, f_y)^T\) is the cameras focal point (as described in [3]).

Note: The calculations above assume that the camera is positioned at the origin. Otherwise both transformations \(\mathbf{K}\) and \(\mathbf{J}\) must be right hand multiplied with the world-to-camera transform.

Rasterization

Once the Gaussians have been projected to the uv-plane, they can be rasterized by performing alpha blending. This is done with the following formula: \[ C(\mathbf{x})=\sum_{i \in \mathcal{N}} c_i \alpha_i \prod_{j=1}^{i-1}\left(1-\alpha_j\right). \] It states that the color value \(C\) at a pixel coordinate \(\mathbf{x}\) is computed by blending each Gaussians color weighted by it's alpha value iterating from the closest to the farthest Gaussian in the set of depth-sorted Gaussians \(\mathcal{N}\). The overall transparency \(\alpha_i\) is computed as \[ \alpha_i = o_i G(x).\]

Tile Based Rendering

Because the density of a Gaussian outside of a certain range will be very close to zero, it's contribution to the color value of a pixel will be negligible if the pixel's coordinate is outside of that range. With tile based rendering we are exploiting this property by only including these Gaussians into the computation of a pixels color value that are within approximately three times the standard deviation of that Gaussian.

To achieve this, the canvas is first partitioned into square tiles. An oriented bounding box is computed to encapsulate every Gaussian and the Gaussians are sorted into the tiles where a Gaussian is assigned to each tile that it's bounding box intersects. Then the pixels color values can be computed on a per tile basis only for the assigned Gaussians, significantly reducing computational complexity.

Computing the Bounding-Box

Given a 2x2 Covariance Matrix \[\mathbf{A} = \begin{bmatrix} a & b\\ b & c \end{bmatrix}\] it's eigenvalues can be computed as \[ \lambda_1, \lambda_2 = \frac{1}{2} (a + d\pm\sqrt{ a^2 - 2ad + 4b^2 + d^2}). \] and the orientation can be computed as \[ \theta = \begin{cases} 0 & b = 0 \land a \geq c \\ \frac{\pi}{2} & b = 0 \land a \lt c \\ atan2(\lambda_1 - a, b) & \text{else} \end{cases} \] from which we construct the rotation matrix \[\mathbf{R} = \begin{bmatrix} cos(\theta) & -sin(\theta)\\ sin(\theta) & cos(\theta) \end{bmatrix}.\] Then, we construct a rectangle with the radii \(r_1 = \sqrt{\lambda_1}\) and \(r_2 = \sqrt{\lambda_2}\) and rotate it using the rotation matrix to get the final bounding-box.
